ESP-32S USB-Micro Entwicklerboard 38-Pin Schraubadapter
AI Thinker ESP-32S USB-Micro Entwicklerboard Pinout

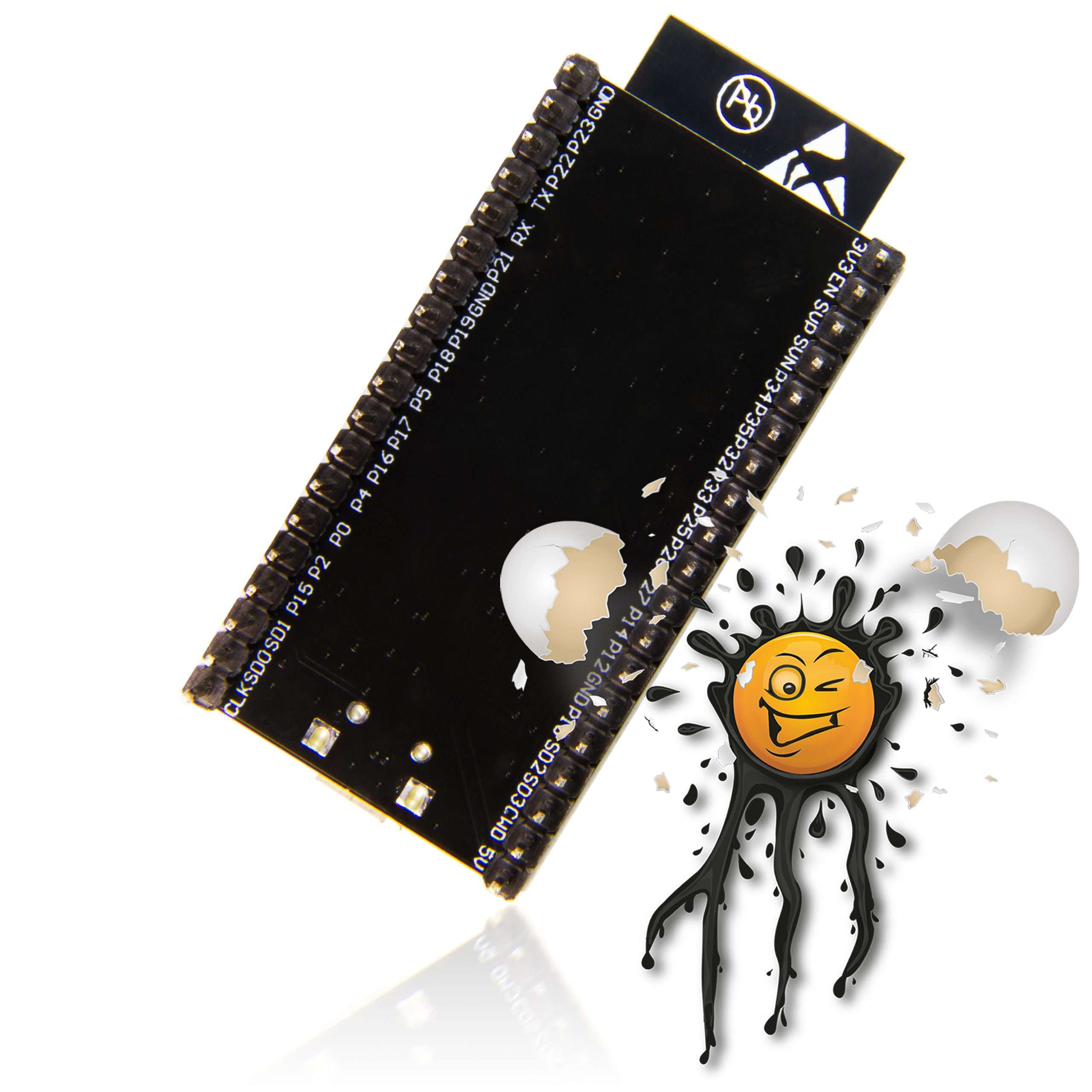

AI Thinker ESP-32S USB-Micro Entwicklerboard 38-Pin
AI Thinker ESP32-S USB-Micro 38Pin DevKit Entwicklerplatine Schraubadapter – Bild 4

AI Thinker ESP32-S USB-Micro 38Pin DevKit Entwicklerplatine Schraubadapter

Preisspanne: 4,26 € bis 6,43 €

AI Thinker ESP32-S USB-Micro 38Pin DevKit Entwicklerplatine Schraubadapter CH340 32Mb/4MB Adapter Board

EAN: N/A Artikelnummer: 307051819192 Kategorien: , , , Schlagwörter: , , , , , , , , , , , , , , , Marke: ,

Beschreibung

AI Thinker ESP32-S USB-Micro 38Pin DevKit Entwicklerplatine Schraubadapter CH340 32Mb/4MB Adapter Board

ESP32-S Development Board Screw Terminal Adapter © ei-ot ®

AI Thinker ESP32-S USB-Micro DevKit CH340 Board © ei-ot ®

AI Thinker ESP32-S USB-Micro Development Board Pinout © ei-ot ®

Screw Terminal Adapter Board for ESP32-S 38 Pin Development Board © ei-ot ®



ESP32 WROOM 32 ESP-32D 38 Pin Entwicklerboard wie folgt verfügbar:

  • AI Thinker ESP32-S USB-Micro DevKit Entwicklerplatine
  • Schraubadapter Board passend für AI Thinker ESP32-S USB-Micro DevKitC

Die AI Thinker ESP32-S USB-Micro Entwicklerplatine basiert auf der ESP32-D0WD-V3 (revision v3.1) MCU.

Das ESP32-S Modul basierend auf 2 low-power Xtensa® 32-bit LX6 CPU’s. Mittels entsprechender Brücke kann wahlweise

  • die integrierte PCB Antenne
  • der U.FL Antennenanschluss zum Anschluss einer externen Antenne mit I-PEX Adapter

aktiviert werden.

Das ESP32-S Modul basiert auf der Xtensa Dual Core 32bit MCU in Kombination mit einem 4MB SPI Flash Speicher.

AI Thinker ESP32-S Entwicklerplatine mit CH340 USB TTL Konverter

Die generelle Spannungsversorgung erfolgt dabei über eine integrierte USB-Mikro Schnittstelle.

WCH stellt notwendige virtuelle COM Port Treiber (CH341) für alle gängigen Betriebssystem wie

  • Windows
  • Mac OS-X
  • Linux

bereit.

Der AI ThinkerESP32-S unterstützt

  • 802.11 b/g/n Standard
  • HT40 WLan Transceiver
  • Bluetooth bis 4.2
  • Takfrequenz 240MHz
  • SRAM 520kBytes
  • 4MB 32Mbit SPI Flash
  • 36 GPIO
  • unterstützte Schnittstellen
    SPI SD Karte,
    UART,
    SPI,
    SDIO,
    I2C,
    LED PWM,
    Motor PWM,
    I2S,
    IR,
    pulse counter,
    GPIO, capacitive touch sensor,
    ADC 12-bit,
    DAC,
    Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

ESP32 ESP-32D 38 Pin development board available:

  • AI Thinker ESP32-S USB-Micro DevKit Development Board
  • Screw Terminal Adapter Board forAI Thinker ESP32-S USB-Micro DevKit

The AI Thinker ESP32-S USB-Micro Development Board is based on ESP32-D0WD-V3 (revision v3.1) MCU.

The ESP32-S module is based on 2 low power Xtensa Dual Core 32bit MCU in combination with a 4MB Flash.

Within solderpads

  • the integrated PCB Antenna
  • the U.FL Antenna Socket Connector for external Antenna with I-PEX Adapter

can be enabled.



ESP32-S Development Board with CH340 USB TTL Converter



The 5V main power supply is supported thru USB-Micro Socket.

For serial communication the ESP32-S Development Board got a CH340 from WCH on board.

Virtual COM Port Driver from WCH available for

  • Windows
  • Mac OS-X
  • Linux



TheESP32-S supports

  • 802.11 b/g/n Standard
  • HT40 WLan Transceiver
  • Bluetooth up to 4.2
  • Frequency 240MHz
  • SRAM 520kBytes
  • 4MB 32Mbit SPI Flash
  • 36 GPIO
  • supported Interfaces
    SPI SD Karte,
    UART,
    SPI,
    SDIO,
    I2C,
    LED PWM,
    Motor PWM,
    I2S,
    IR,
    pulse counter,
    GPIO, capacitive touch sensor,
    ADC 12-bit,
    DAC,
    Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

38 Pin ESP32-S USB-Micro Development Board
  • 5V Power Supply thru USB-Micro Connector
  • CH340 USB TTL Converter on board
    • USB Specification 2.0 compliant; full-speed (12 Mbps)
    • Baud rates: 300 bps to 1 Mbps
    • Virtual COM Port Device Drivers
    • – Works with existing COM port PC Applications
    • – Royalty-free distribution license – Windows 8/7/Vista/Server 2003/XP/2000
    • – Mac OS-X/OS-9 and higher
    • – Linux
  • CPU / MPU:
    Frequency: up to 240 MHz. based on Tensilica LX6 microcontroller with 600 DMIPS
    up to 600 DMIPS448 KByte ROM size
    520 KByte SRAM size
  • SPI Flash:
    Flash memory: 32Mbit
    clock frequency: 75 MHz.
    Page program: up to 256 bytes in 0.64ms (TYP) Sector erase: 512Kb in 0.6s
    Bulk erase: 17 – 23 s
    Hardware write protection: protected area size defined by nonvolatile bits BP0, BP1, BP2
    Deep power-down: 1μA (TYP)
    Write Cycles: > 100,000 write cycles per sector Data retention: > 20 Years
  • 802.11 b/g/n/e/i protocol
  • supports Wi-Fi Direct (P2P)
  • soft-AP Integrated TCP/IP protocol stack
  • 802.11 n (2.4 GHz), up to 150 Mbps
  • 802.11 e: QoS for wireless multimedia technology
  • Block ACK
  • Fragmentation and defragmentation
  • Automatic Beacon monitoring/scanning
  • 802.11 i security features: pre-authentication and TSN
  • Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
  • Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
  • UMA compliant and certified
  • Antenna diversity and selection
  • Compliant with Bluetooth v4.2 BR/EDR and BLE specification
  • deep sleep current of < 2.5uA
  • Class-1, class-2 and class-3 transmitter without external power amplifier
  • Enhanced power control
  • +10 dBm transmitting power
  • NZIF receiver with -98 dBm sensitivity
  • Adaptive Frequency Hopping (AFH)
  • Standard HCI based on SDIO/SPI/UART
  • High speed UART HCI, up to 4 Mbps
  • BT 4.2 controller and host stack
  • Service Discover Protocol (SDP)
  • General Access Profile (GAP)
  • Security Manage Protocol (SMP)
  • Bluetooth Low Energy (BLE)
  • ATT/GATT
  • HID
  • All GATT-based profile supported
  • SPP-Like GATT-based profile
  • BLE Beacon
  • A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
  • CVSD and SBC for audio codec
  • Bluetooth Piconet and Scatternet

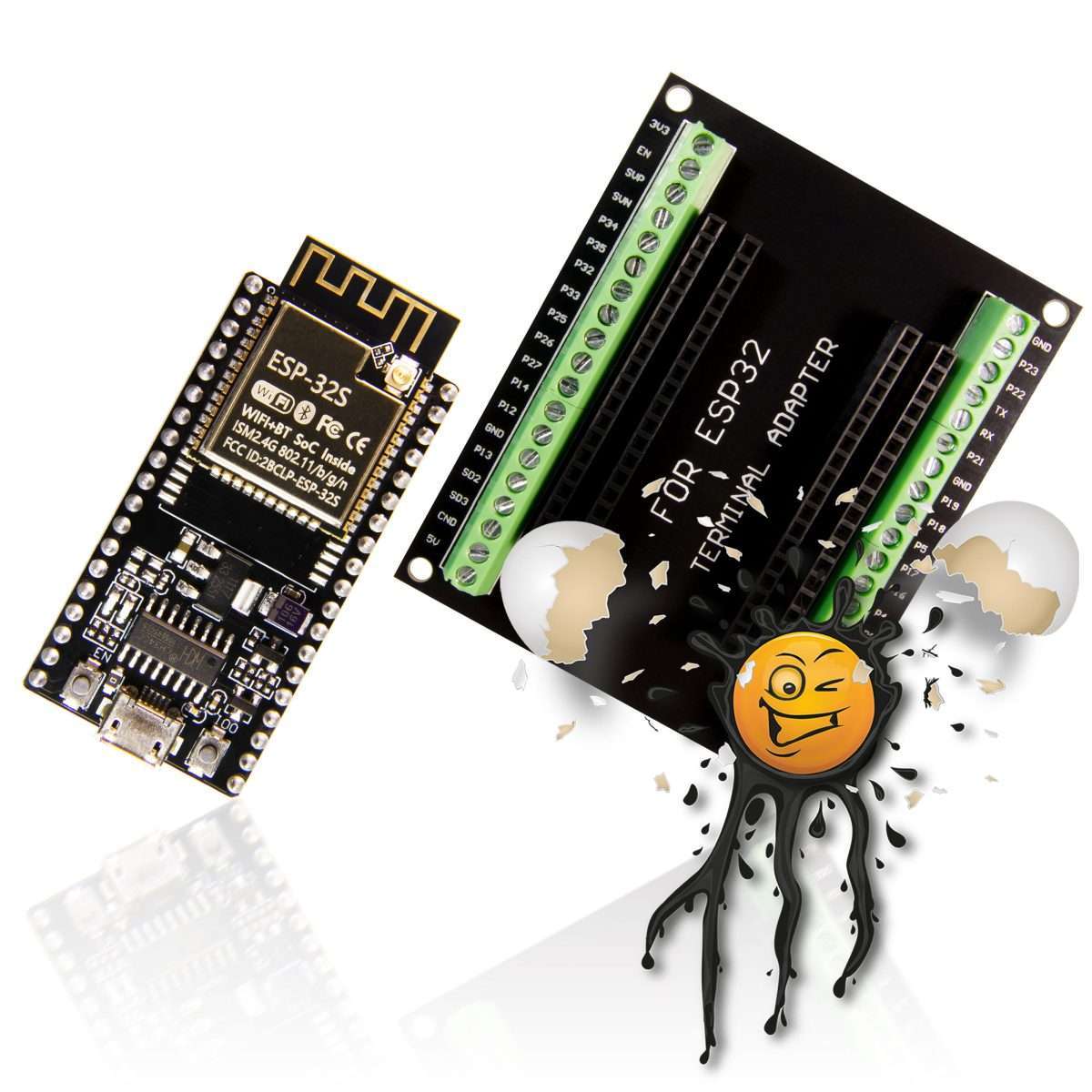

Adapter Board for 38 Pin ESP3-S2 Development Board Features:

  • 38 Screw Terminals
