ESP32-C6 N4R2 N16R8 WiFi 6 BL 5.3 Zigbee dual USB-C ESP32-WROOM-1

ESP32-C6 WiFi 6 BL 5.3 Zigbee dual USB-C N4R2 N16R8 CH343 USB TTL Entwickler Development Board

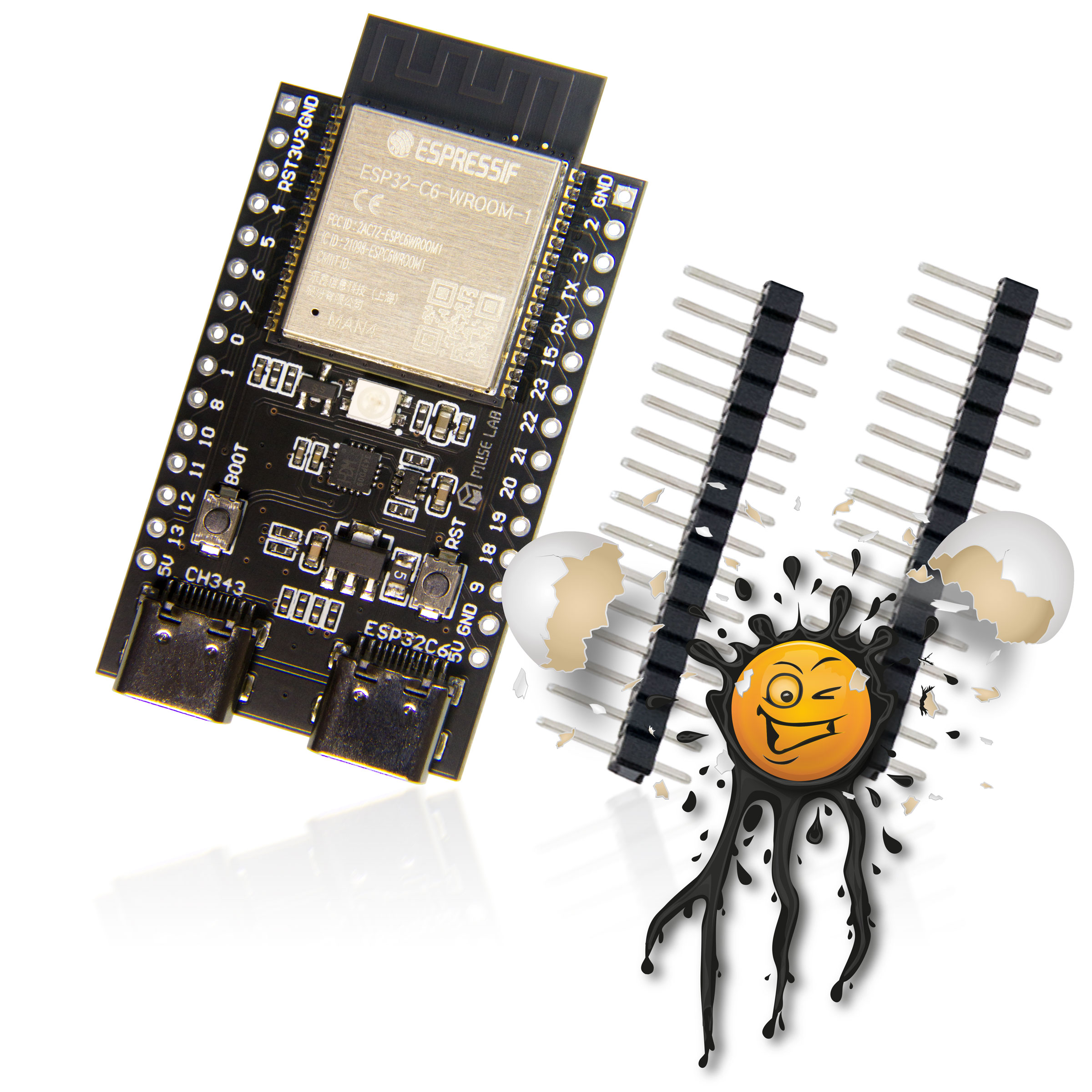

ESP32-C6 dual USB-C WiFi 6 Zigbee BL 5.3 Development Board © androegg

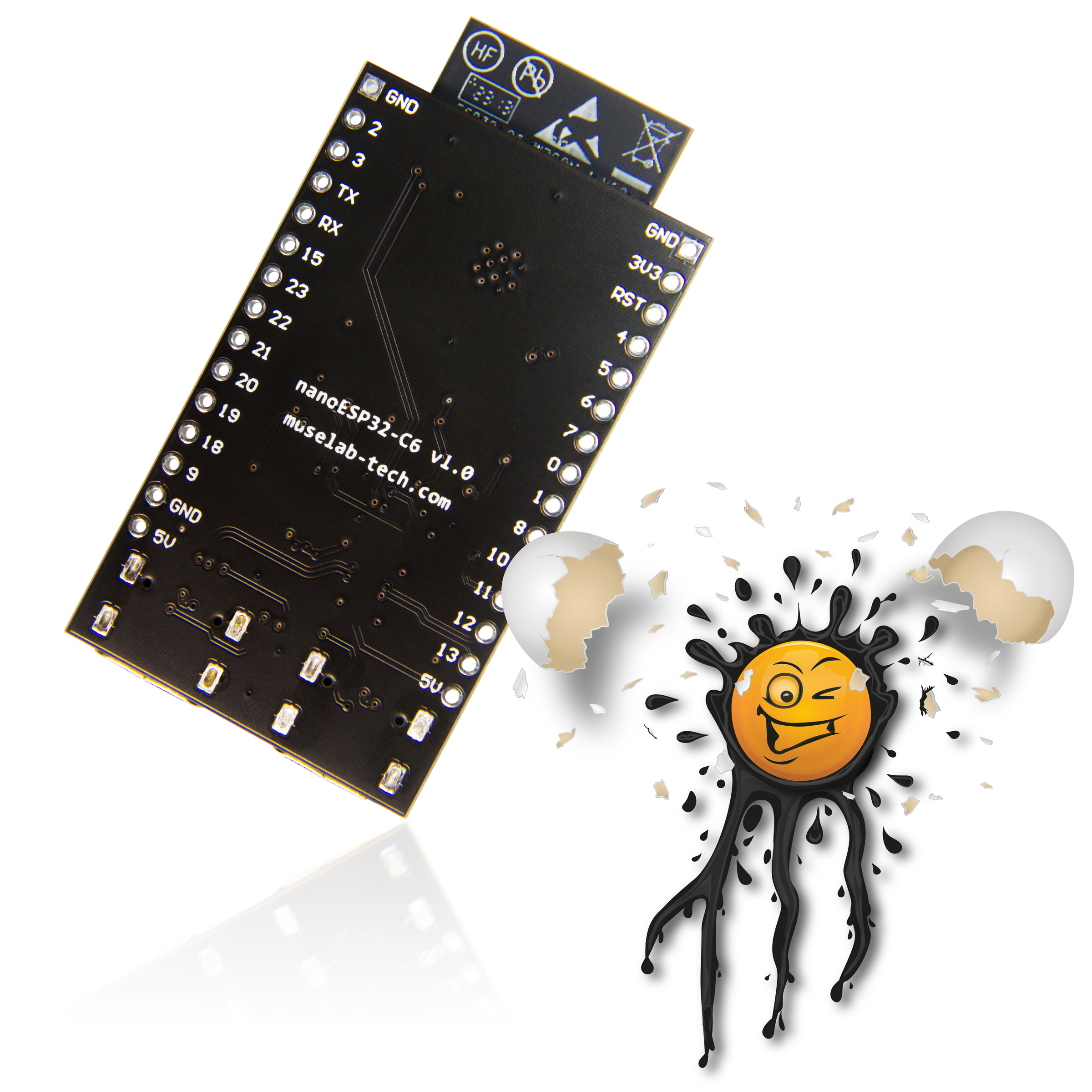

ESP32-C6 dual USB-C WiFi 6 Zigbee BL 5.3 Development Board © androegg

ESP32-C6 dual USB-C WiFi 6 Zigbee BL 5.3 Development Board © androegg

ESP32-C6 dual USB-C Entwicklerboard wie folgt verfügbar

• ESP32-C6 – N4R2 MCU mit 4MB Flash und 2MB PSRAM
• ESP32-C6 – N16R8 MCU mit 16MB Flash und 8 MB PSRAM

ESP32-C6 dual USB-C Entwicklerboard basiert auf der Espressif ESP32-C6 MCU.

Der ESP32-C6 unterstützt neben den typischen Standards insbesondere

• IEEE 802.11ax WiFi 6
• Bluetooth LE (Bluetooth 5.3 zertifiziert)
• IEEE 802.15.4 Zigbee 3.0 / Thread

Das ESP32-C6 eignet sich für

• Espressif ESP-IDF SDK

Entwicklerboard basiert auf Espressif’s Ultra-low-power SoC mit RISC-V single-core microprocessor mit bis zu 160MHz. in Kombination mit

• 4MB SPI Flash
• 320KB ROM
• 512KB HP SRAM
• 16KB LP SRAM

ESP32-S3 Entwicklerboard

Im Vergleich zu typischen ESP32 Entwicklerboards verfügt dieses ESP32 -S3 Entwicklerboard über 2 USB-C Buchsen,

• USB1 CH343 zur seriellen Anbindung über den CH343 USB TTL Konverter
• USB2 ESP32C6 zur direkten seriellen Anbindung an den ESP32-C6

Die generelle Spannungsversorgung erfolgt dabei über eine integrierte USB-C Schnittstelle.

Ferner verfügt das ESP32-S3 Entwickler Board über eine CH343 USB TTL Konverter, sodass eine direkte, serielle Kommunikation über die USB Schnittstelle erfolgen kann.

Das ESP32-C6 Entwickler Board unterstützt

• 802.11ax Standard WiFi6
• 802.11 b/g/n Standard
• HT40 WLan Transceiver
• Datenrate bis zu 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Uplink and downlink OFDMA
• Downlink MU-MIMO (multi-user, multiple input, multiple output)
• Beamformee
• IEEE 802.15.4

• Compliant with IEEE 802.15.4-2015 protocol
• OQPSK PHY in 2.4 GHz band
• Data rate: 250 Kbps
• Thread 1.3
• Zigbee 3.0
• Bluetooth bis 5.3

• Bluetooth Mesh
• High power Modus (20 dBm)
• BT Transferrate 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• LE power control
• bis zu 23 GPIO
• unterstützte Schnittstellen
  SPI SD Karte,
  UART,
  SPI,
  SDIO,
  I2C,
  LED PWM,
  Motor PWM,
  I2S,
  IR,
  pulse counter,
  GPIO, capacitive touch sensor,
  ADC 12-bit (bis zu 20 Kanäle),
  DAC,
  Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

• ESP32-C6 – N4R2 MCU with 4MB Flash and 2MB PSRAM
• ESP32-C6 – N16R8 MCU with 16MB Flash and 8 MB PSRAM

ESP32-C6 dual USB-C development board is based on Espressif ESP32-C6 MCU.

Besides teh typical ESP32 standards the ESP32-C6 supports also:

• IEEE 802.11ax WiFi 6
• Bluetooth LE (Bluetooth 5.3 zertifiziert)
• IEEE 802.15.4 Zigbee 3.0 / Thread

The ESP32-C6 Developmnet Baord supports

• Espressif ESP-IDF SDK

The ESP32-S3 Development Board is based on Xtensa® Dual Core 32bit MCU with up to 240 MHz. in combination

• 4MB Flash
• 320KB ROM
• 512KB HP SRAM
• 16KB LP SRAM

ESP32-S3 Development Board

Compared to typical ESP32 Development Boards, this ESP32-S3 Development Board has two USB-C Socket Connector,

• USB1 CH343 serial connection thru CH343 USB TTL Converter
• USB2 ESP32C6 serial connection directly to ESP32-C6

The 5V main power supply is supported thru USB-C Socket.

For serial communication the ESP32 S3Development Board got also a CH343 USB TTL Converter on board (connected to USB-C Socket)

The ESP32-C6 Development Board supports

• 802.11ax Standard WiFi6
• 802.11 b/g/n Standard
• HT40 WLan Transceiver
• Data rate up to 150 Mbps
• Wi-Fi Multimedia (WMM)
• TX/RX A-MPDU, TX/RX A-MSDU
• Uplink and downlink OFDMA
• Downlink MU-MIMO (multi-user, multiple input, multiple output)
• Beamformee
• IEEE 802.15.4

• Compliant with IEEE 802.15.4-2015 protocol
• OQPSK PHY in 2.4 GHz band
• Data rate: 250 Kbps
• Thread 1.3
• Zigbee 3.0
• Bluetooth up to 5.3

• Bluetooth Mesh
• High power mode (20 dBm)
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• LE power control
• up to 23 GPIO
• supported Interfaces
  SPI SD Karte,
  UART,
  SPI,
  SDIO,
  I2C,
  LED PWM,
  Motor PWM,
  I2S,
  IR,
  pulse counter,
  GPIO, capacitive touch sensor,
  ADC 12-bit (up to 20 channels),
  DAC,
  Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

ESP32-C6 Development Board Features:

• 5V Power Supply thru USB-C Connector
• RGB LED
• Dual USB-C (ESP32 / CH343)
• CH343 USB TTL Converter on board
• supports up to 23 GPIO
• CPU / MPU:
  Frequency: up to 240 MHz. based on Tensilica LX7
  320 KByte ROM size
  512 KByte HP SRAM size
  16 KByte LP SRAM size
• SPI Flash:
  Flash memory: 4MB
  clock frequency: 75 MHz.
  Page program: up to 256 bytes in 0.64ms (TYP) Sector erase: 512Kb in 0.6s
  Bulk erase: 17 – 23 s
  Hardware write protection: protected area size defined by nonvolatile bits BP0, BP1, BP2
  Deep power-down: 1μA (TYP)
  Write Cycles: > 100,000 write cycles per sector Data retention: > 20 Years
• WiFi 6 IEEE 802.11ax-compliant
  • 20 MHz-only non-AP mode
  • MCS0 ~MCS9
  • Uplink and downlink OFDMA, especially suitable for simultaneous connections in high-density environments
  • Downlink MU-MIMO (multi-user, multiple input, multiple output) to increase network capacity
  • Beamformee that improves signal quality
  • Channel quality indication (CQI) – DCM (dual carrier modulation) to improve link robustness
  • Spatial reuse to maximize parallel transmissions
  • Target wake time (TWT) that optimizes power saving mechanisms
• 802.11 b/g/n/e/i protocol
  • supports Wi-Fi Direct (P2P)
  • soft-AP Integrated TCP/IP protocol stack
  • 802.11 n (2.4 GHz), up to 150 Mbps
  • 802.11 e: QoS for wireless multimedia technology
  • Block ACK
  • Fragmentation and defragmentation
  • Automatic Beacon monitoring/scanning
  • 802.11 i security features: pre-authentication and TSN
  • Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
  • Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
  • UMA compliant and certified
  • Antenna diversity and selection
• Compliant with Bluetooth v5.3
  • Bluetooth LE: Bluetooth 5.3 certified
  • Bluetooth mesh
  • High power mode (20 dBm)
  • Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
  • Advertising extensions
  • Multiple advertisement sets
  • Channel selection algorithm #2
  • LE power control
• IEEE 802.15.4 Zigbee 3.0 / Thread
  • Compliant with IEEE 802.15.4-2015 protocol
  • OQPSK PHY in 2.4 GHz band
  • Data rate: 250 Kbps
  • Thread 1.3
  • Zigbee 3.0
• deep sleep current of 7uA
