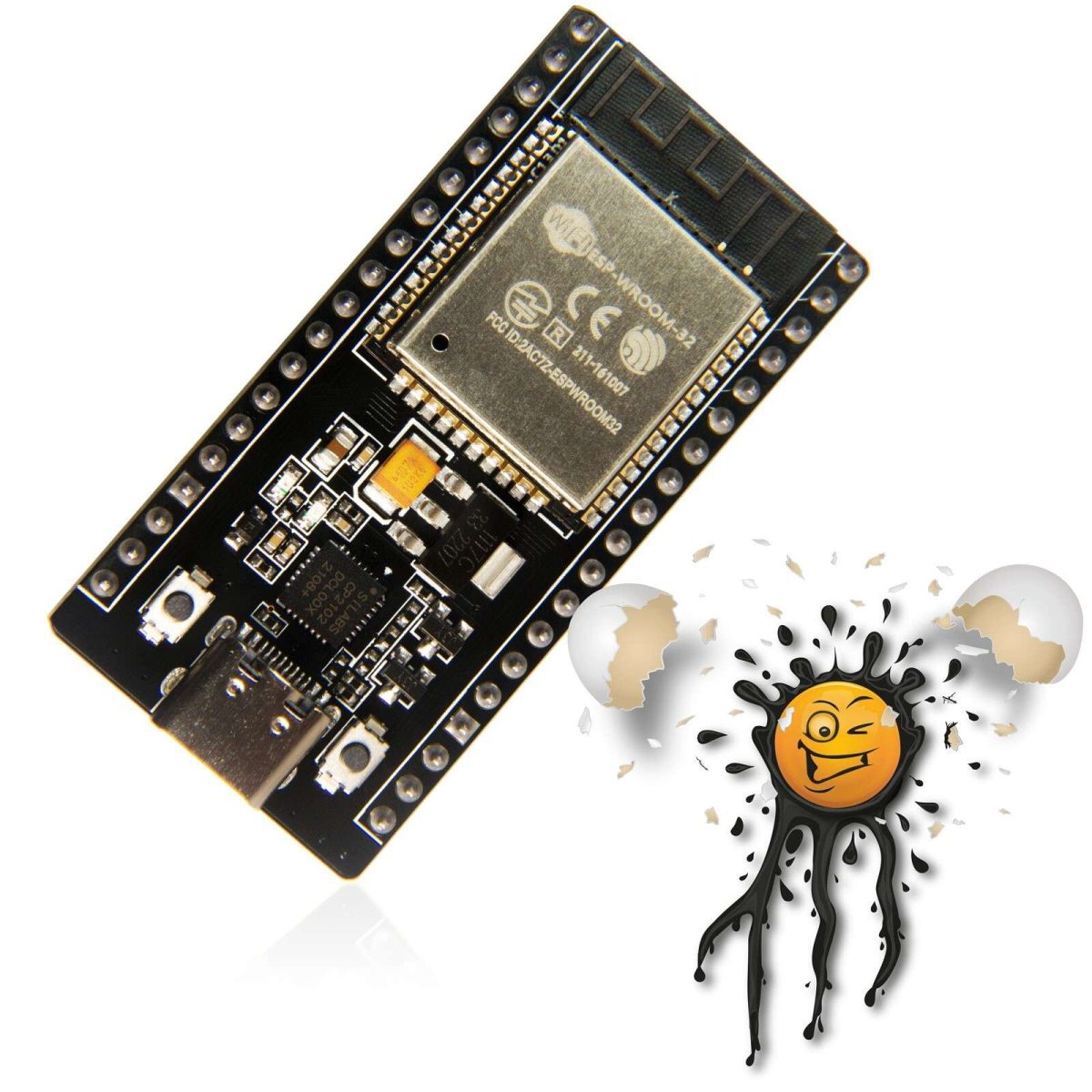

ESP32 USB-C Entwicklerboard 38 Pin CP2102
ESP32 WROOM32 USB-C CP2102 ESP32-DevKitC 32Mb/4MB 38 Pin – Bild 2

ESP32 WROOM32 USB-C CP2102 ESP32-DevKitC 32Mb/4MB 38 Pin

8,22 €

ESP32-DevKitC ESP32-C 38Pin WROOM32 USB-C CP2102 32Mb/4MB Entwicklerplatine

17 vorrätig

EAN: N/A Artikelnummer: 284966457378-38pin-CP2102 Kategorien: , Schlagwörter: , , , , , , , , , , , , , , Marke:

Beschreibung



ESP32 WROOM32 USB-C CP2102 ESP32-DevKitC 32Mb/4MB 38 Pin Development Board

ESP32 USB-C 38 Pin CP2102 Development Board © ei-ot ®

ESP32-DevKitC D WROOM32 USB-C CP2102 © ei-ot ®

ESP32-DevKitC V4 ESP32-D WROOM32 Development Board Pinout © ei-ot ®







Das ESP32 WROOM32 Entwicklerboard basiert auf der Xtensa Dual Core 32bit MCU in Kombination mit einem 4MB SPI Flash Speicher.

ESP32 WROOM32 Entwicklerboard

Im Vergleich zu typischen ESP32 Entwicklerboards verfügt dieses ESP32 Entwicklerboard über eine USB-C Buchse.

Die generelle Spannungsversorgung erfolgt dabei über eine integrierte USB-C Schnittstelle.

Ferner verfügt das ESP32 WROOM32Entwickler Board über einen

  • CP2102 USB TTL Konverter

,sodass eine direkte, serielle Kommunikation über die USB Schnittstelle erfolgen kann.

Das ESP32 WROOM32 Entwickler Board unterstützt

  • 802.11 b/g/n Standard
  • HT40 WLan Transceiver
  • Bluetooth bis 4.2
  • Taktfrequenz 160MHz
  • SRAM 512kBytes
  • 4MB 32Mbit SPI Flash
  • unterstützte Schnittstellen
    SPI SD Karte,
    UART,
    SPI,
    SDIO,
    I2C,
    LED PWM,
    Motor PWM,
    I2S,
    IR,
    pulse counter,
    GPIO, capacitive touch sensor,
    ADC 12-bit,
    DAC,
    Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

The ESP32 WROOM32 Module is based on Xtensa Dual Core 32bit MCU in combination with a 4MB Flash Speicher.

ESP32 WROOM32 Development Board Adapter

Compared to typical ESP32 Development Boards, this Development Board has an USB-C Socket Connector.

The 5V main power supply is supported thru USB-C Socket.

For serial communication the ESP32 WROOM32Development Board got also a

  • CP2102 USB TTL Converter

on board (connected to USB-C Socket)

The ESP32 WROOM32 Development Board supports

  • 802.11 b/g/n Standard
  • HT40 WLan Transceiver
  • Bluetooth up to 4.2
  • Frequency 160MHz
  • SRAM 512kBytes
  • 4MB 32Mbit SPI Flash
  • supported Interfaces
    SPI SD Karte,
    UART,
    SPI,
    SDIO,
    I2C,
    LED PWM,
    Motor PWM,
    I2S,
    IR,
    pulse counter,
    GPIO, capacitive touch sensor,
    ADC 12-bit,
    DAC,
    Two-Wire Automotive Interface (TWAI®), compatible with ISO11898-1 (CAN Specification 2.0)

USB-C ESP32-DevKitC Development Board
  • available in 2 versions
    • WROOM32 with integrated PCB Antenna
  • 5V Power Supply thru USB-C Connector
  • CP2102 USB TTL Converter on board
    • USB Specification 2.0 compliant; full-speed (12 Mbps)
    • Baud rates: 300 bps to 1 Mbps
    • Virtual COM Port Device Drivers
    • – Works with existing COM port PC Applications
    • – Royalty-free distribution license – Windows 8/7/Vista/Server 2003/XP/2000
    • – Mac OS-X/OS-9 and higher
    • – Linux
  • CPU / MPU:
    Frequency: up to 240 MHz. based on Tensilica LX6 microcontroller with 600 DMIPS
    up to 600 DMIPS448 KByte ROM size
    520 KByte SRAM size
  • SPI Flash:
    Flash memory: 32Mbit
    clock frequency: 75 MHz.
    Page program: up to 256 bytes in 0.64ms (TYP) Sector erase: 512Kb in 0.6s
    Bulk erase: 17 – 23 s
    Hardware write protection: protected area size defined by nonvolatile bits BP0, BP1, BP2
    Deep power-down: 1μA (TYP)
    Write Cycles: > 100,000 write cycles per sector Data retention: > 20 Years
  • 802.11 b/g/n/e/i protocol
  • supports Wi-Fi Direct (P2P)
  • soft-AP Integrated TCP/IP protocol stack
  • 802.11 n (2.4 GHz), up to 150 Mbps
  • 802.11 e: QoS for wireless multimedia technology
  • Block ACK
  • Fragmentation and defragmentation
  • Automatic Beacon monitoring/scanning
  • 802.11 i security features: pre-authentication and TSN
  • Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
  • Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
  • UMA compliant and certified
  • Antenna diversity and selection
  • Compliant with Bluetooth v4.2 BR/EDR and BLE specification
  • deep sleep current of < 2.5uA
  • Class-1, class-2 and class-3 transmitter without external power amplifier
  • Enhanced power control
  • +10 dBm transmitting power
  • NZIF receiver with -98 dBm sensitivity
  • Adaptive Frequency Hopping (AFH)
  • Standard HCI based on SDIO/SPI/UART
  • High speed UART HCI, up to 4 Mbps
  • BT 4.2 controller and host stack
  • Service Discover Protocol (SDP)
  • General Access Profile (GAP)
  • Security Manage Protocol (SMP)
  • Bluetooth Low Energy (BLE)
  • ATT/GATT
  • HID
  • All GATT-based profile supported
  • SPP-Like GATT-based profile
  • BLE Beacon
  • A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
  • CVSD and SBC for audio codec
  • Bluetooth Piconet and Scatternet

Zusätzliche Informationen

Version

ESP32-DDevKitC V4, Adapter Platine

Manufacturer Part Number284966457378-38pin-CP2102
